Automated Soil Sensor Probe
Measure Deeper, Manage Better
Fast. Accurate. Versatile.
The CoreScan™ covers 50ac/hr with proven sensor technology on a wide range of vehicle platforms for ultimate deployability and versatility. In real-time visualize the rooting profile using SoilViewer in-cab software.
CoreScan™ Details
-
Compaction: Force sensors measure penetration resistance providing data essential for understanding soil compaction levels which affect root growth and nutrient uptake.
Soil Carbon/Organic Matter: A dual-wavelength Visible-Near Infrared (Vis-NIR) optical sensor is used for measuring soil organic matter and carbon content, crucial for assessing soil health and carbon sequestration. Used for measuring soil organic matter and carbon content, crucial for assessing soil health and carbon sequestration.
Soil Texture/ Nutrient and Water Holding Capacity: A Bulk Apparent Electrical Conductivity (ECa) sensor measures the ability of soils to conduct electricity which is primarily driven by particle size and determines water-holding capacity and CEC.Moisture: a capacitance sensor measures the dielectric permittivity of the soil-- the ability of the soil to store electrical energy. This measurement can then be converted to soil water content for understanding water dynamics within the soil.
Sensor Fusion: Through Machine Learning and Pedotransfer Functions, the multiple sensor datasets can be used in predicting bulk density, natural soil nutrient variation patterns, and more. -
Depth Range: The CoreScan can analyze soil profiles from the surface down to one meter / three feet deep in manual mode and up to 60 cm / two feet in automated mode.
Data Resolution: Provides high-resolution data with measurements taken at 1 cm intervals, offering detailed insights into soil structure and variability.
-
Insertion Time: A single insertion takes between 8-10 seconds.
Coverage Speed: Capable of covering up to 50 acres per hour (at a 1 acre density), making it efficient for large-scale farming operations.

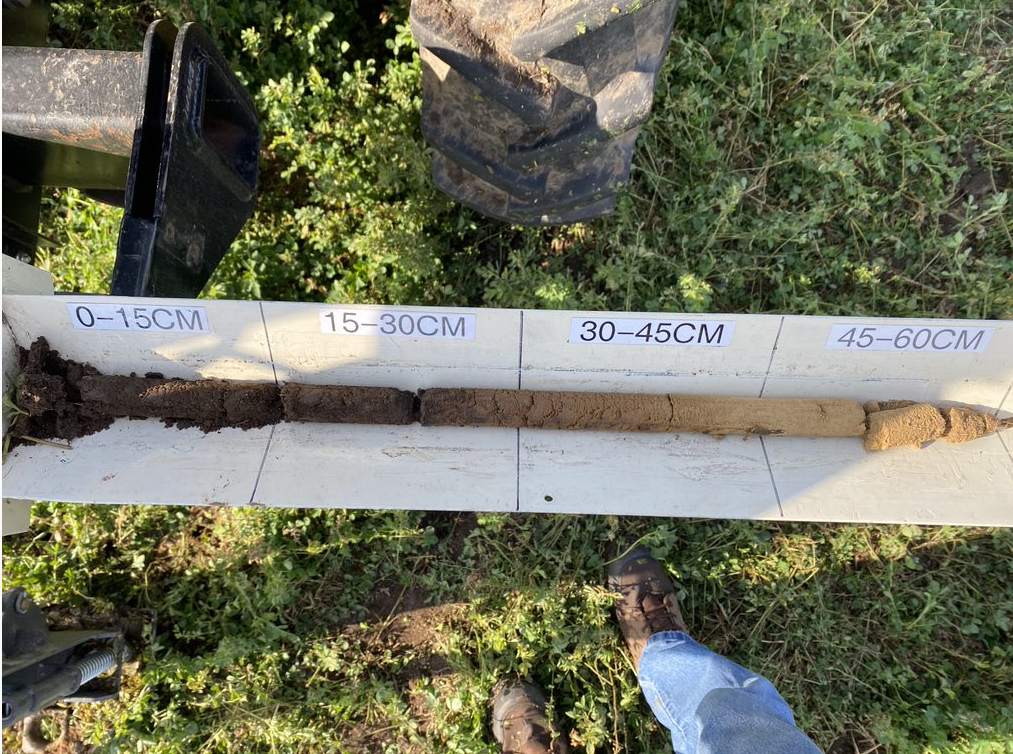

Soil Coring Capabilities: A soil coring hardware is included for taking validation and visualization physical cores

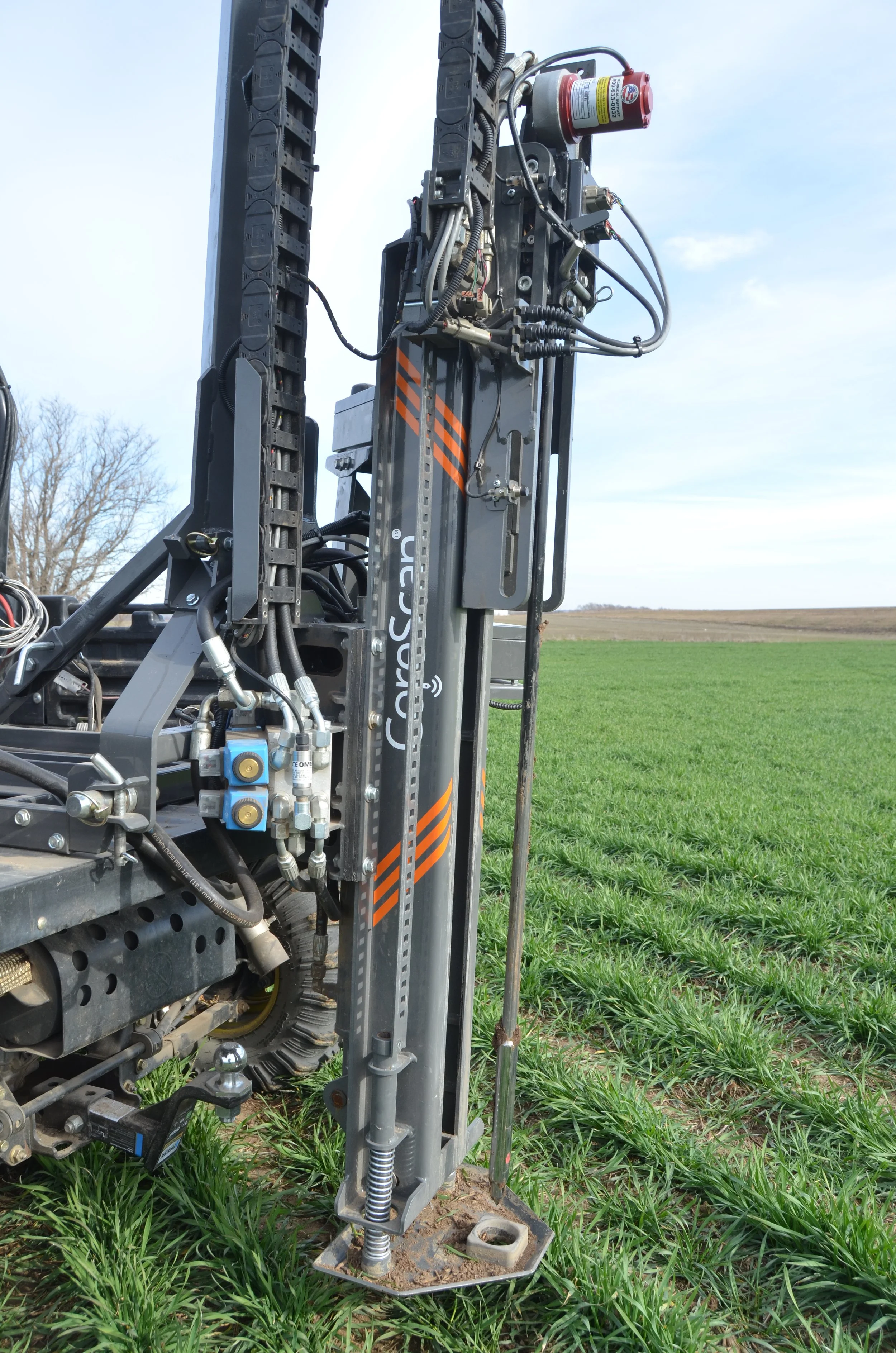

In-Crop Sensing: because the CoreScan™ is only engaged in the soil at the sampling locations, it is possible to map during the growing season.
Mounting Options: Flexible mounting capabilities include setups for UTVs, trucks, tractors, and an option for handheld use, accommodating various farm sizes and operational preferences.
-
User Interface: Veris provides the hardware and software for datalogging and geolocating the sensor insertions. It is designed for ease of use, allowing farmers and agronomists to operate the device with minimal training.
Data Visualization: Results are visible in real-time during sensor insertion. Multiple insertions can be reviewed and compared side by side.
Data Processing: Veris provides a quality control and lab calibration service using the FieldFusion™ platform.
Data Compatibility: the processed data results are provided in a flexible and adaptable form that can be integrated into third party software, helping users interpret and utilize soil data effectively.
Training and Support: Veris Technologies offers comprehensive training sessions and ongoing support to ensure users can maximize the tool's capabilities and integrate its insights into their farming practices effectively.
A groundbreaking tool that digitally captures multi-layered soil properties with precision. Offering rapid, in-depth soil analysis, it enables advanced agricultural practices and effective nutrient management, while providing essential data for carbon sequestration and soil health baselines. Perfect for informed, precise farming decisions.
CoreScan™ Applications
FAQs
-
While CoreScan™ is user-friendly, Veris Technologies offers free remote training and video/phone support to ensure users can maximize the tool's capabilities. Training sessions cover operational procedures, data interpretation, and best practices for integrating the data into farming operations.
-
The CoreScan™ is versatile across various soil types. The system is equipped with safeguards to avoid damage to the probe if it encounters an impassable rock or subsurface layer.
-
CoreScan™ delivers comprehensive soil data, including measurements of soil compaction, moisture levels, organic content, and texture. This data is critical for creating precise input application strategies, monitoring soil health, and establishing carbon sequestration baselines.
-
The CoreScan™ is crafted for user-friendliness and simplicity in the field. The essential technical requirements include a compatible vehicle for mounting—UTVs, trucks, or tractors. The limiting factor for the depth of sensing will be the vehicle weight. Users with drier, more difficurt soils may want to consider heavier options than a UTV. Those needing more mobility, a handheld option is also available. Users should have a fundamental understanding of the operational interface. Veris Technologies provides comprehensive training materials and support to ensure all users can fully leverage the capabilities of CoreScan™, optimizing its use in various agricultural settings.
-
The CoreScan™ benefits users by allowing them to see what was previously unknown about a field: it’s three-dimensional soil variability. The yield limitations and opportunities hidden beneath the conventional surface soil sample. This high-resolution “digital soil pit” gives detailed information to help farmers and agronomists make more informed decisions about crop management, improving yield, soil health, and overall farm sustainability.
Field Tested, Farmer Approved
“We ran the CoreScan™ and MSP3 on a farm my family has owned for over 100 years, so we know the soils very well. The data from both platforms confirmed much of what we knew, but the CoreScan™ gave us information about the soil at depths we have never been able to access before. This knowledge should help us down the road as me make decisions on best practices.”
Terry L. | Tennessee
Dig Deeper with CoreScan.
.
